7'6" Steel HTX Blade Crate

HTX PLOWS

7'6" Steel HTX

Product Number: STB18976

5 / 5 (1 review)

Available HTX PLOWS:

Where to Buy Product Selector

The Product Number shown for this item may be only one of several components needed for a complete product setup. To confirm additional component requirements, please visit the Product Selector Tool or consult with your local BOSS Dealer.

Product Details

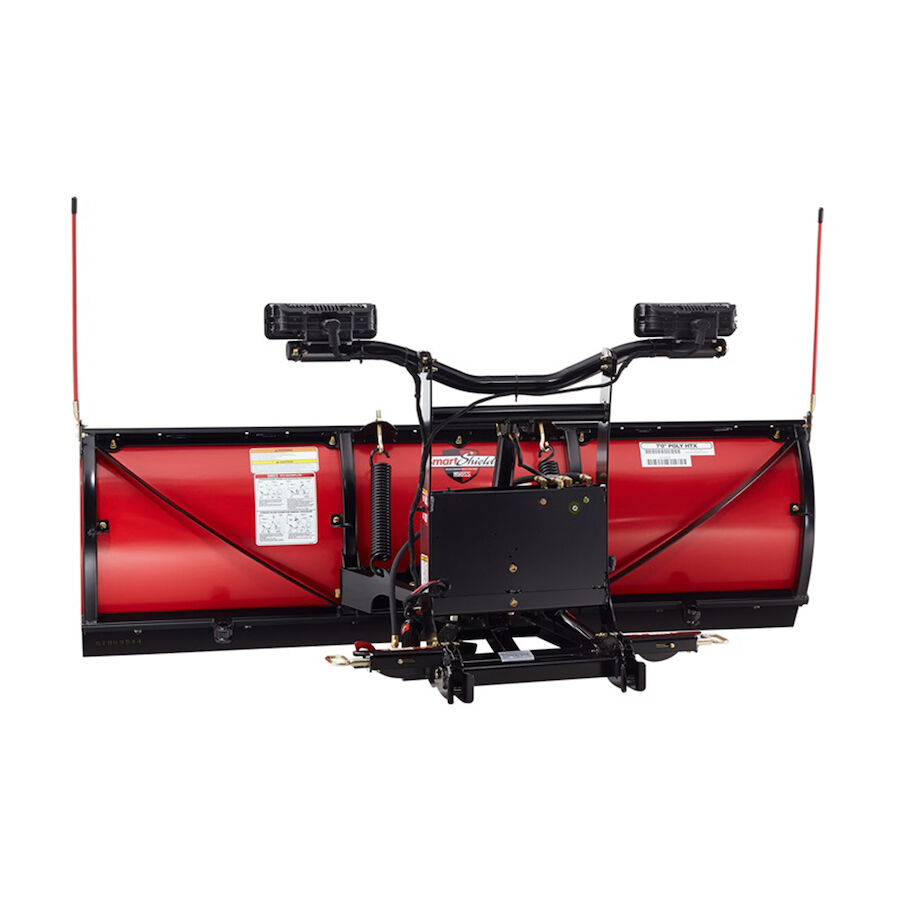

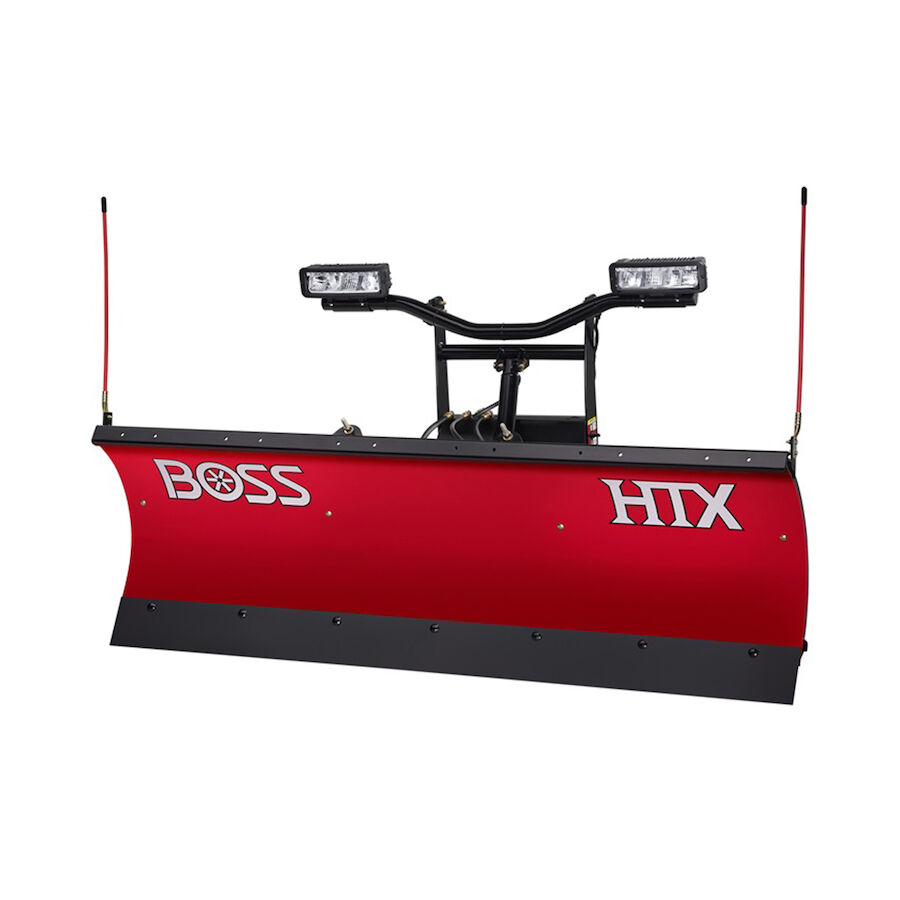

The HTX plow RESTORES ORDER with the same features and power of BOSS full-size straight-blade plows, built specifically for half-ton trucks. With business owners and homeowners in mind, the HTX line offers a strong, durable push frame and quadrant to clean up driveways and small business parking lots with a light-duty vehicle. When you need to RESTORE ORDER with your lighter-duty truck, BOSS is always there to BACK YOU UP. When the plow is shipped, the blade crate contains the completely assembled blade (halves for a v-plow) minus the coupler, hydraulics and electrical components that are part of the plow box.

SL3 L.E.D. HEADLIGHTS - 100% L.E.D. system with nearly double the light output of standard halogen systems
SMARTSHIELD PAINT - Sets the standard for supreme quality, corrosion protection, and lasting durability.
OPTIONAL D-FORCE - Improve your backdragging abilities with D-Force!

Product Features

View All Features

SL3 L.E.D. With Ice Shield

SL3 headlight package, standard on every BOSS truck plow, shines brighter and farther than traditional halogen packages and is equipped with Ice Shield Technology. With best-in-class 100% LED lighting, integrated with Ice Shield Technology to prevent snow and ice build-up on the lens, these headlights use half the amperage of halogen systems and have an 8-10 year life expectancy. The SL3 headlights are also 40% smaller than SmartLight2 lights and yet much more powerful with the signature BOSS premium look you expect.

Learn More

SmartHitch2

Designed to be simple and easy to use. Flip, plug, click. The three-step attachment process makes it easy to switch between plows.

SmartShield

Made to last the SmartShield paint system delivers superior corrosion protection and a long-lasting, high-gloss shine.

Learn More

SmartTouch2

Advanced control technology combined with ergonomic control features and large backlit buttons make BOSS controls highly intuitive and easy to use. Attach the versatile SmartTouch2 Handheld Control to a pedestal mount or mount it on your dash (with or without handle).
Discover the functions of BOSS SmartTouch2 and Joystick controllers with this easy-to-follow guide.

Learn More

Enclosed Hydraulics

Delivers speed and reliability and is protected from the elements to prevent corrosion and hydraulic freeze-up.

Reinforced Moldboard

Diagonal cross-bracing and formed bottom channel increase blade rigidity.

Chainless Hydraulic Lift

The chainless hydraulic cylinder lifting system from BOSS uses a chainless, hydraulic lift system, which greatly reduces snowplow bounce and provides full float capabilities.

Full Moldboard Trip

The entire blade trips forward when obstacles are encountered to protect the truck and plow from damage.

Optional D-Force

Improve backdragging performance by adding D-Force to your new Super-Duty, Standard-Duty and HTX straight-blade plow, or your new 8'2" DXT and 9'2" DXT v-blade plow. D-Force improves scraping performance while backdragging by maintaining a consistent hydraulic down force powered by a hydraulic accumulator. D-Force is an optional accessory on new truck plow purchases and must be added at the time of purchase. D-Force includes D-Force specific plow box and controller. Retrofit kits are not available. (Excludes EXT, Heavy-Duty, Trip-Edge and Drag Pro plows.)

Learn More

2 Year Limited Warranty

The BOSS 2-Year Limited Warranty protects against material defects for peace of mind.

Learn More

BOSS 500 HR Chrome Plated Cylinders

Made to last, our 500-hour rated chromium-plated angle cylinders replace other, less effective applications. Delivering advanced corrosion protection so you can continue Restoring Order for years to come.

Specifications	8' Stainless Steel HTX V-Blade	7'6" Steel HTX V-Blade	7'6" Stainless Steel HTX V-Blade	7' Steel HTX	7'6" Steel HTX	7' Stainless Steel HTX	7'6" Stainless Steel HTX	7' Poly HTX	7'6" Poly HTX
Attachment System	SmartHitch 2	SmartHitch 2	SmartHitch 2	SmartHitch 2	SmartHitch 2	SmartHitch 2	SmartHitch 2	SmartHitch 2	SmartHitch 2
Blade Height	32.5 in (82.55 cm) at end 25 in (63 cm) at center	32 in (81 cm) at end 25 in (63 cm) at center	32 in (81 cm) at end 25 in (63 cm) at center	26 in (66 cm)	26 in (66 cm)	26 in (66 cm)	26 in (66 cm)	26 in (66 cm)	26 in (66 cm)
Blade Material	Stainless Steel	Steel	Stainless Steel	Steel	Steel	Stainless Steel	Stainless Steel	Poly	Poly
Blade Size	8 ft.	7 ft. 6 in.	7 ft. 6 in.	7 ft.	7 ft. 6 in.	7 ft.	7 ft. 6 in.	7 ft.	7 ft. 6 in.
Blade Thickness	14-ga 304 Stainless	14-ga (0.19 cm) Mild Steel	14-ga 304 Stainless	14-ga (0.19 cm) Mild Steel	14-ga (0.19 cm) Mild Steel	14-ga 304 Stainless	14-ga 304 Stainless	0.25 in. (0.64 cm) Poly	0.25 in. (0.64 cm) Poly
Blade Width (Scoop) \| Curb Guard Width	82 in (208.28 cm)	74 in (188 cm)	74 in (188 cm)
Blade Width (V-Position) \| Curb Guard Width	85 in (215.9 cm)	81 in (206 cm)	81 in (206 cm)
Blade Width \| Curb Guard Width	96 in. (244 cm)	90 in. (229 cm)	90 in. (229 cm)	84 in. (213 cm)	90 in. (229 cm)	84 in. (213 cm)	90 in. (229 cm)	84 in. (213 cm)	90 in. (229 cm)
Cutting Edge	3/8 in x 6 in (1 cm x 15 cm)	3/8 in x 6 in (1 cm x 15 cm)	3/8 in x 6 in (1 cm x 15 cm)	3/8 in x 6 in (1 cm x 15 cm)	3/8 in x 6 in (1 cm x 15 cm)	3/8 in x 6 in (1 cm x 15 cm)	3/8 in x 6 in (1 cm x 15 cm)	3/8 in x 6 in (1 cm x 15 cm)	3/8 in x 6 in (1 cm x 15 cm)
D-Force	Not an Option	Not an Option	Not an Option	Optional	Optional	Optional	Optional	Optional	Optional
Lift Cylinder	1 3/4" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm)	1 3/4" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm)	1 3/4" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm)	1 3/4" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm)	1 3/4" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm)	1 3/4" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm)	1 3/4" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm)	1 3/4" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm)	1 3/4" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm)
Lighting	SL3 L.E.D. with Ice Shield Technology	SL3 L.E.D. with Ice Shield Technology	SL3 L.E.D. with Ice Shield Technology	SL3 L.E.D. with Ice Shield Technology	SL3 L.E.D. with Ice Shield Technology	SL3 L.E.D. with Ice Shield Technology	SL3 L.E.D. with Ice Shield Technology	SL3 L.E.D. with Ice Shield Technology	SL3 L.E.D. with Ice Shield Technology
Plow Shoes	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Plow Type	V-Plow	V-Plow	V-Plow	Straight-Blade	Straight-Blade	Straight-Blade	Straight-Blade	Straight-Blade	Straight-Blade
Reinforcement Ribs	6 Vertical, 2 Diagonal	6 Vertical, 2 Diagonal	6 Vertical, 2 Diagonal	4 Vertical, 2 Diagonal	6 Vertical, 2 Diagonal	4 Vertical, 2 Diagonal	6 Vertical, 2 Diagonal	4 Vertical, 2 Diagonal	6 Vertical, 2 Diagonal
SmartLock Cylinders	1 1/4" x 8 1/4" (3 cm x 21 cm)	1 1/4" x 8 1/4" (3 cm x 21 cm)	1 1/4" x 8 1/4" (3 cm x 21 cm)
Trip Mechanism	Full-Trip	Full-Trip	Full-Trip	Full-Trip	Full-Trip	Full-Trip	Full-Trip	Full-Trip	Full-Trip
Trip Springs	2	2	2	2	2	2	2	2	2
Truck Applications	1/2 Ton	1/2 Ton	1/2 Ton	1/2 Ton	1/2 Ton	1/2 Ton	1/2 Ton	1/2 Ton	1/2 Ton
Vehicle	Truck	Truck	Truck	Truck	Truck	Truck	Truck	Truck	Truck
Weight	550 lbs / 249 kg	490 lbs / 222.26 kg	535 lbs / 242.67 kg	393 lbs / 178 kg	440 lbs / 200 kg	393 lbs / 178 kg	440 lbs / 200 kg	367 lbs / 166 kg	416 lbs / 188 kg
