FORGE 2.0 Long Bed (Auger)

Forge

Forge 2.0 Auger

Product Number: VBS22200

Available Forge:

Where to Buy Product Selector

The Product Number shown for this item may be only one of several components needed for a complete product setup. To confirm additional component requirements, please visit the Product Selector Tool or consult with your local BOSS Dealer.

Product Details

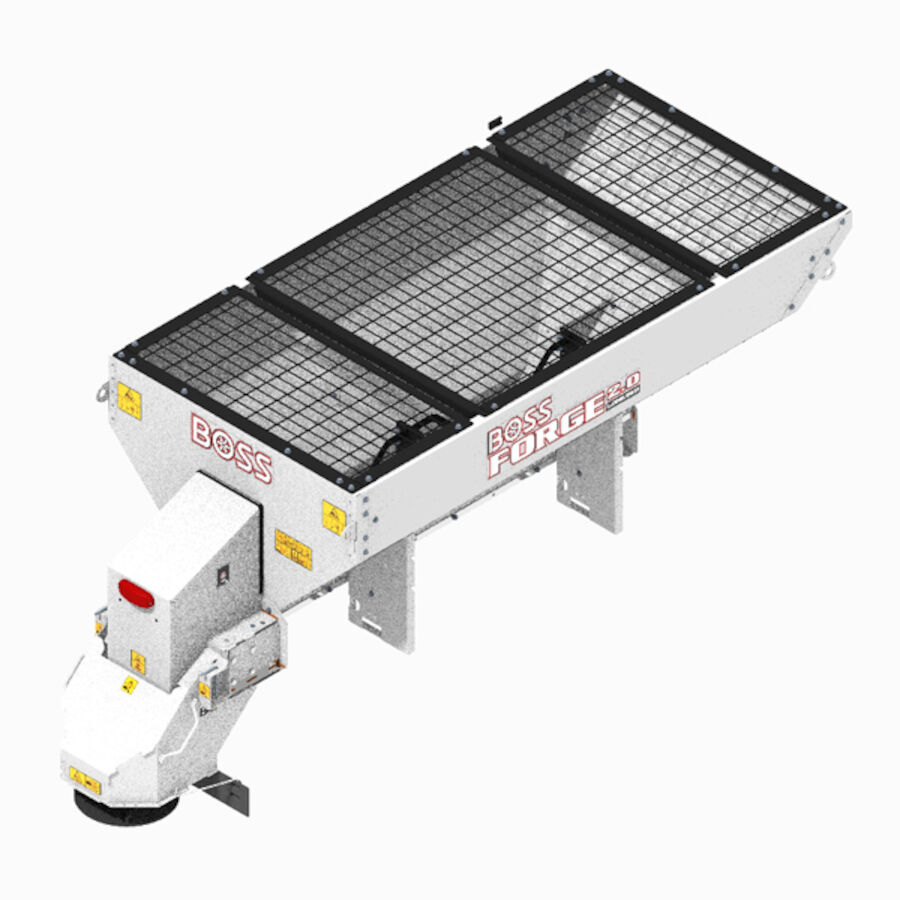

The BOSS FORGE® 2.0 auger system brings power and durability to long-bed applications. Constructed to easily break through frozen chunks of salt and sand, FORGE® systems will withstand even the most severe storms. The extended heavy-duty hopper makes loading simpler with a loader bucket. Complete with bolting, riveting, and welding, the FORGE® stainless steel hopper gives you optimal durability and serviceability. So you can do WHATEVER IT TAKES to get the job done right.

Product Features

View All Features

Full Length Auger

6" mild-steel helical auger with 9" of pitch and 2 3/8" diameter shaft for durability and reliability.
Understanding some key differences between the two feed systems is important. Learn more about auger and pintle chain applications to help decide which spreader is right for you.

Learn More

Stainless Steel Hopper

14 ga stainless steel hopper built to outlast the elements.

Urethane Spinner

14.5" diameter urethane spinner is sealed for durability and maximum spreading efficiency.

Motor Cover

Motor cover protects both the drive and spinner motors from falling sand, salt and de-icing materials.

Top Screen

Standard top screen.

Pre-Wet Capable

Option for pre-wet capability and upgraded controller.

2 Year Limited Warranty

The BOSS 2-Year Limited Warranty protects against material defects for peace of mind.

Learn More

Specifications	Forge 2.0 Pintle	Forge 2.0 Auger	Forge 1.5 Pintle	Forge 1.5 Auger	Forge 1.0 Pintle	Forge 1.0 Auger
Capacity	cubic yd 2 / cubic m 1.53	cubic yd 2 / cubic m 1.53	cubic yd 1.5 / cubic m 1.15	cubic yd 1.5 / cubic m 1.15	cubic yd 1 / cubic m .76	cubic yd 1 / cubic m .76
Control	Dual Variable Speed Control	Dual Variable Speed Control	Dual Variable Speed Control	Dual Variable Speed Control	Dual Variable Speed Control	Dual Variable Speed Control
Deflector	Standard	Standard	Standard	Standard	Standard	Standard
Display Type	LED Digital Display Controller	LED Digital Display Controller	LED Digital Display Controller	LED Digital Display Controller	LED Digital Display Controller	LED Digital Display Controller
Feed Mechanism	Pintle/Conveyor Chain	Auger	Pintle/Conveyor Chain	Auger	Pintle/Conveyor Chain	Auger
Feed Motor	1/2 HP Feed Motor	1/2 HP Feed Motor	1/2 HP Feed Motor	1/2 HP Feed Motor	1/2 HP Feed Motor	1/2 HP Feed Motor
Gearbox	Planetary Worm 137:1	Planetary Worm 91:1	Planetary Worm 137:1	Planetary Worm 91:1	Planetary Worm 137:1	Planetary Worm 91:1
Hopper Construction	14 ga Stainless Steel	14 ga Stainless Steel	14 ga Stainless Steel	14 ga Stainless Steel	14 ga Stainless Steel	14 ga Stainless Steel
Hopper Cover	Optional	Optional	Optional	Optional	Optional	Optional
Hopper Height	36 in / 91.44 cm	36 in / 91.44 cm	33 in / 83.82 cm	33 in / 83.82 cm	33 in / 83.82 cm	33 in / 83.82 cm
Hopper Length	96 in / 244 cm	96 in / 244 cm	70 in / 177.8 cm	70 in / 177.8 cm	49.5 in / 126 cm	49.5 in / 126 cm
Hopper Width	48 in / 121.92 cm	48 in / 121.92 cm	48 in / 121.92 cm	48 in / 121.92 cm	48 in / 121.92 cm	48 in / 121.92 cm
Inverted V-Baffle	Optional	Standard	Optional	Standard	Optional	Standard
LED CHSML	Standard	Standard	Standard	Standard	Standard	Standard
Lighting	Optional halogen or LED work lights	Optional halogen or LED work lights	Optional halogen or LED work lights	Optional halogen or LED work lights	Optional halogen or LED work lights	Optional halogen or LED work lights
Material Conveying Method	14" (36 cm) Wide Pintle Chain	6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger	14" (36 cm) Wide Pintle Chain	6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger	14" (36 cm) Wide Pintle Chain	6" (15 cm) OD x 9" (23 cm) Pitch Full Length Auger
Max Feed Rate	4 cu ft (0.11 cu m) per minute	2.3 cu ft (0.06 cu m) per minute	4 cu ft (0.11 cu m) per minute	2.3 cu ft (0.06 cu m) per minute	4 cu ft (0.11 cu m) per minute	2.3 cu ft (0.06 cu m) per minute
Minimum Bed Length	96 in (243.8 cm)	96 in (243.8 cm)	78 in (198 cm)	78 in (198 cm)	66 in (168 cm)	66 in (168 cm)
Spinner	14.5 in (36.8 cm) Diameter Poly Spinner	14.5 in (36.8 cm) Diameter Poly Spinner	14.5 in (36.8 cm) Diameter Poly Spinner	14.5 in (36.8 cm) Diameter Poly Spinner	14.5 in (36.8 cm) Diameter Poly Spinner	14.5 in (36.8 cm) Diameter Poly Spinner
Spinner Assembly	Easily Removable/Swing Out	Easily Removable/Swing Out	Easily Removable/Swing Out	Easily Removable/Swing Out	Easily Removable/Swing Out	Easily Removable/Swing Out
Spinner Gearmotor	1/8 HP Gearmotor	1/8 HP Gearmotor	1/8 HP Gearmotor	1/8 HP Gearmotor	1/8 HP Gearmotor	1/8 HP Gearmotor
Spreader Overall Length	124 in / 315 cm	124 in / 315 cm	98 in / 249 cm	98 in / 249 cm	78 in / 198 cm	78 in / 198 cm
Spreading Width	2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material	2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material	2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material	2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material	2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material	2 ft - 40 ft (0.6 m - 12 m) Dry free-flowing material
Tie-Down Kit	Standard	Standard	Standard	Standard	Standard	Standard
Top Screen	Standard	Standard	Standard	Standard	Standard	Standard
Trough	11 ga. Stainless Steel	11 ga. Stainless Steel	11 ga. Stainless Steel	11 ga. Stainless Steel	11 ga. Stainless Steel	11 ga. Stainless Steel
Vehicle Application	3/4 T & 1 T	3/4 T & 1 T	3/4 T & 1 T	3/4 T & 1 T	1/2 T	1/2 T
Vibrator	Optional	Standard (Single Vibrator)	Optional	Standard (Single Vibrator)	Optional	Standard (Single Vibrator)
Weight	825 lbs / 374.2 kg	775 lbs / 351.5 kg	750 lbs / 340 kg	700 lbs / 317.5 kg	625 lbs / 284 kg	575 lbs / 261 kg
