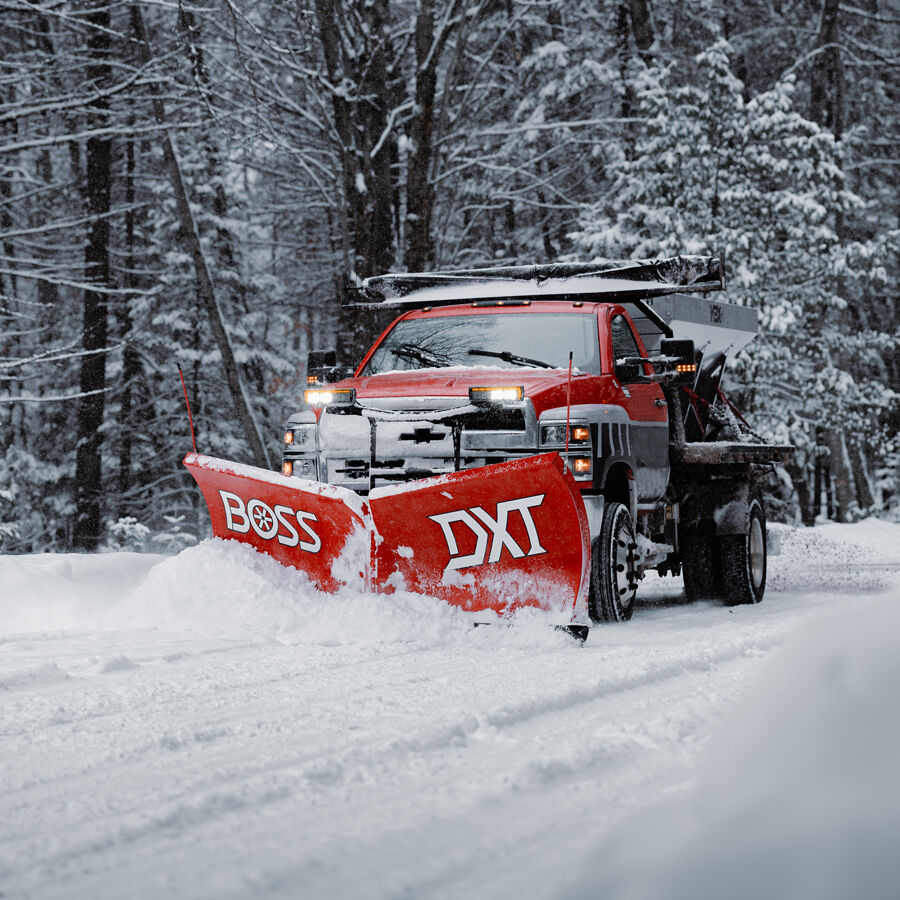

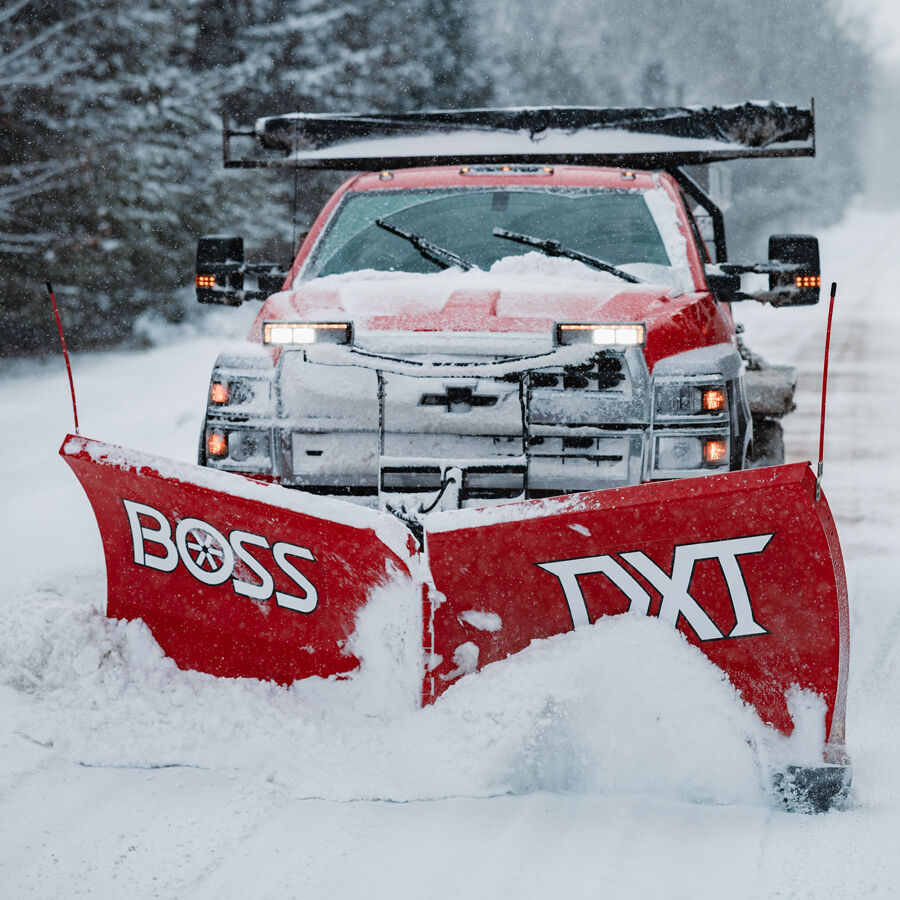

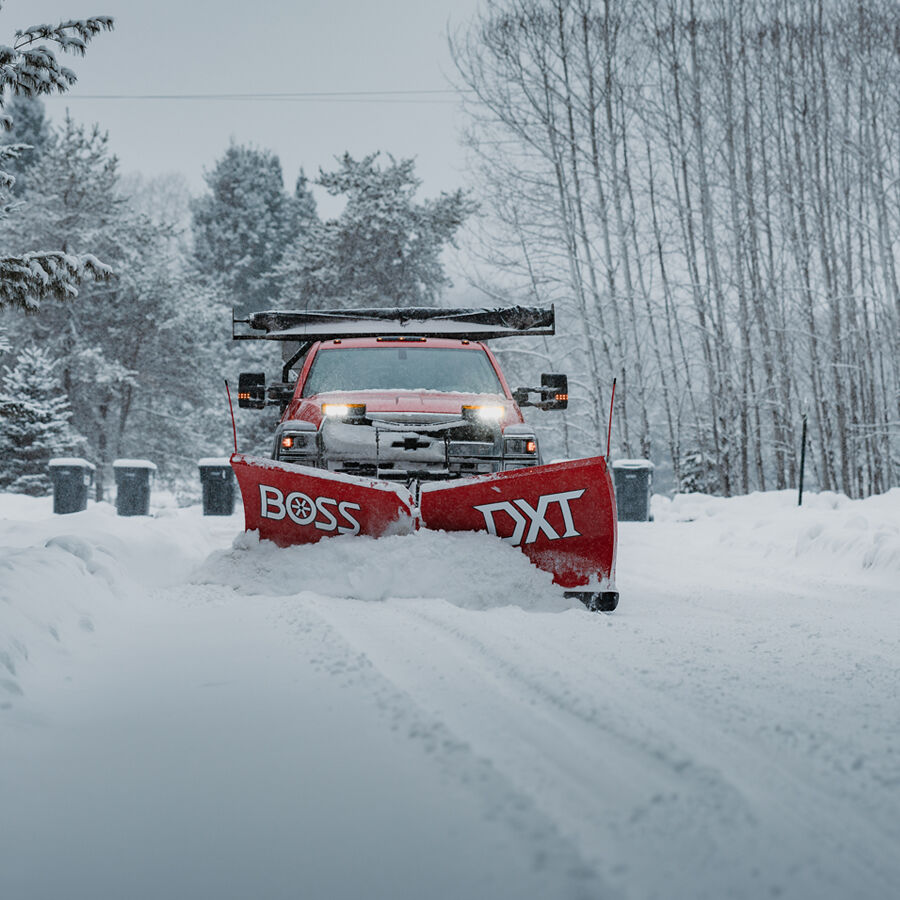

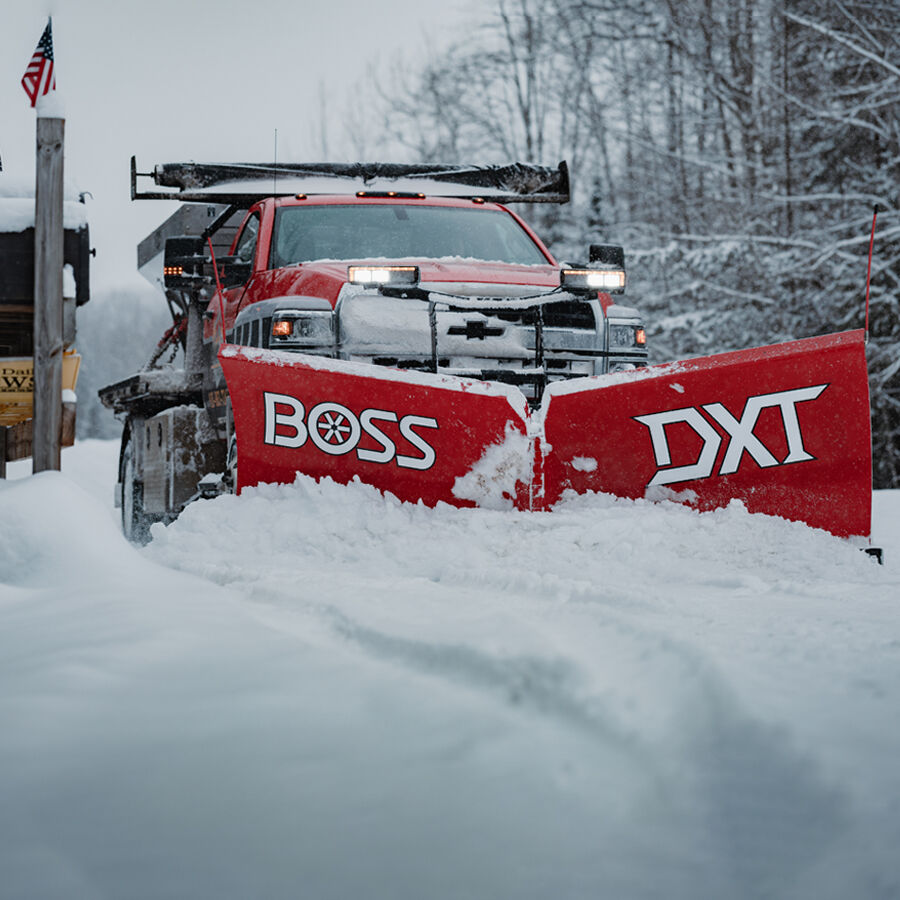

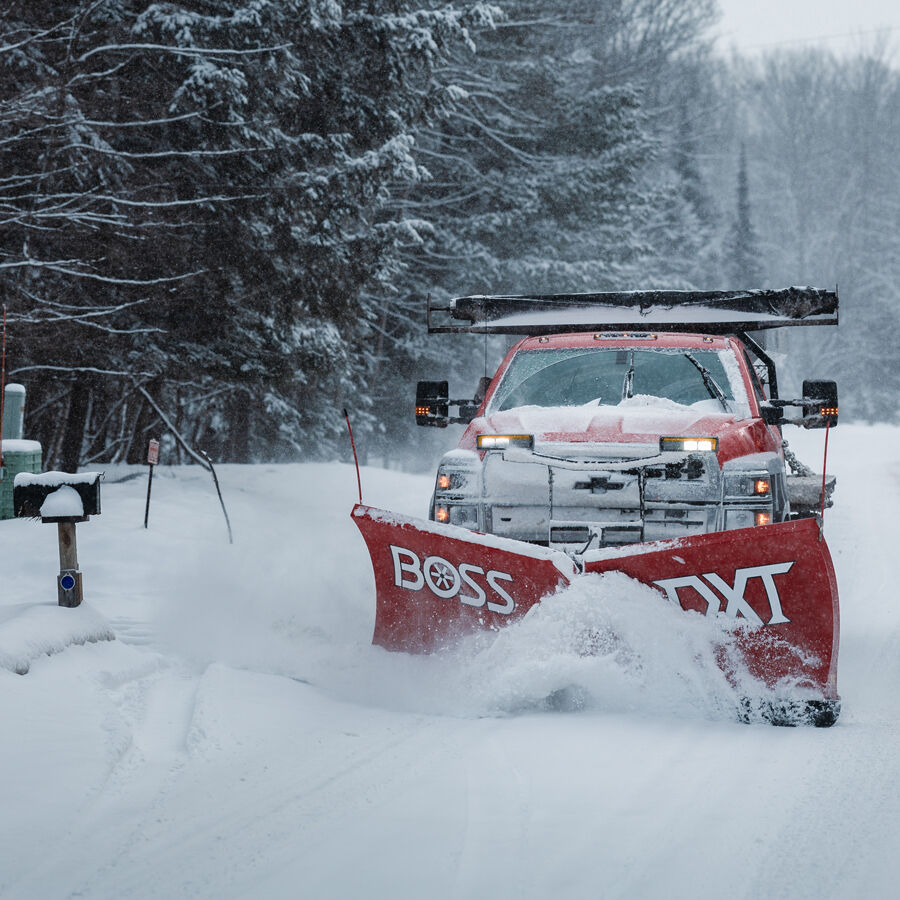

10' Steel DXT Blade Crate

DXT PLOWS

10' Steel DXT

Product Number: MSC17510

5 / 5 (1 review)

Available DXT PLOWS:

Where to Buy Product Selector

The Product Number shown for this item may be only one of several components needed for a complete product setup. To confirm additional component requirements, please visit the Product Selector Tool or consult with your local BOSS Dealer.

Product Details

The 10’ Steel Heavy Duty DXT is equipped with all the benefits of the steel DXT. Treated with powder coating to help reduce rust, the durability is the reassurance you need to last for years to come. Constructed 5 inches taller and four inches wider on each side means bigger is always better for handling the most challenging jobs. The dual trip design combines both trip-edge and full moldboard trip technologies for high and low trip protection when striking obstacles like frozen snowbanks, manhole covers, and curbs. Because when it's on you to RESTORE ORDER, BOSS is always there to BACK YOU UP.

SL3 L.E.D. HEADLIGHTS - 100% L.E.D. system with nearly double the light output of standard halogen systems
SMARTSHIELD PAINT - Sets the standard for supreme quality, corrosion protection, and lasting durability.

Product Features

View All Features

2 Year Limited Warranty

The BOSS 2-Year Limited Warranty protects against material defects for peace of mind.

Learn More

SL3 L.E.D. With Ice Shield

SL3 headlight package, standard on every BOSS truck plow, shines brighter and farther than traditional halogen packages and is equipped with Ice Shield Technology. With best-in-class 100% LED lighting, integrated with Ice Shield Technology to prevent snow and ice build-up on the lens, these headlights use half the amperage of halogen systems and have an 8-10 year life expectancy. The SL3 headlights are also 40% smaller than SmartLight2 lights and yet much more powerful with the signature BOSS premium look you expect.

Learn More

SmartHitch2

Designed to be simple and easy to use. Flip, plug, click. The three-step attachment process makes it easy to switch between plows.

SmartShield

Made to last the SmartShield paint system delivers superior corrosion protection and a long-lasting, high-gloss shine.

Learn More

SmartTouch2

Advanced control technology combined with ergonomic control features and large backlit buttons make BOSS controls highly intuitive and easy to use. Attach the versatile SmartTouch2 Handheld Control to a pedestal mount or mount it on your dash (with or without handle).
Discover the functions of BOSS SmartTouch2 and Joystick controllers with this easy-to-follow guide.

Learn More

Chainless Hydraulic Lift

The chainless hydraulic cylinder lifting system from BOSS uses a chainless, hydraulic lift system, which greatly reduces snowplow bounce and provides full float capabilities.

Patented Dual Trip Design

Patented dual trip technology combines both a trip-edge and full moldboard trip system offering dual trip protection from obstacles like manhole covers to frozen snowbanks.
BOSS Snowplows utilize three types of tripping systems. Click the link to learn about the differences between each.

Learn More

1/2" x 6" Base Angle

The tripping base angles on the DXT come standard with curb guards and snow catcher, and can be used as the cutting edge until worn. The optional cutting edge is made from Hardox® for maximum wear resistance and durability.

SmartLock

SmartLock® Cylinders hydraulically hold the cylinder in position when back dragging. These single acting cylinders only run the hydraulic system to extend the wings forward. To return the wings, wing return springs do the work. This is a much simpler design with less moving parts and less wear on the hydraulic system.

Snow Catcher

A proven patented snow catcher in the center section on every BOSS V-plow ensures that no snow lines are left behind.

DXT Heavy-Duty Pushframe

The heavy-duty push frame and center section are designed for additional strength and durability.

DXT Reinforced Moldboard

Diagonal cross-bracing and formed bottom channel increase blade rigidity.

Flared Wings

with enhanced curl to throw snow with maximum efficiency.

BOSS 500 HR Chrome Plated Cylinders

Made to last, our 500-hour rated chromium-plated angle cylinders replace other, less effective applications. Delivering advanced corrosion protection so you can continue Restoring Order for years to come.

Specifications	8'2" Steel DXT	9'2" Steel DXT	8'2" Stainless Steel DXT	9'2" Stainless Steel DXT	8'2" Poly DXT	9'2" Poly DXT	10' Steel DXT
Attachment System	SmartHitch 2	SmartHitch 2	SmartHitch 2	SmartHitch 2	SmartHitch 2	SmartHitch 2	SmartHitch 2
Base Angle	0.5 in. x 6 in. (1.3 cm x 15 cm)	0.5 in. x 6 in. (1.3 cm x 15 cm)	0.5 in. x 6 in. (1.3 cm x 15 cm)	0.5 in. x 6 in. (1.3 cm x 15 cm)	0.5 in. x 6 in. (1.3 cm x 15 cm)	0.5 in. x 6 in. (1.3 cm x 15 cm)	0.5 in. x 6 in. (1.3 cm x 15 cm)
Blade Height	30 in (76 cm) at center, 37.5 in (95 cm) at end	30 in (76 cm) at center, 37.5 in (95 cm) at end	30 in (76 cm) at center, 37.5 in (95 cm) at end	30 in (76 cm) at center, 37.5 in (95 cm) at end	30 in (76 cm) at center, 37.5 in (95 cm) at end	30 in (76 cm) at center, 37.5 in (95 cm) at end	35 in (88 cm) at center, 45 in (114 cm) at end
Blade Material	Steel	Steel	Stainless Steel	Stainless Steel	Poly	Poly	Steel
Blade Size	8 ft. 2 in.	9 ft. 2 in.	8 ft. 2 in.	9 ft. 2 in.	8 ft. 2 in.	9 ft. 2 in.	10 ft.
Blade Thickness	11-ga Steel	11-ga Steel	14-ga 304 Stainless	14-ga 304 Stainless	0.375 in. (0.95 cm) Poly	0.375 in. (0.95 cm) Poly	11-ga Steel
Blade Width (Scoop) \| Curb Guard Width	81 in (206 cm)	92 in (234 cm)	81 in (206 cm)	92 in (234 cm)	81 in (206 cm)	92 in (234 cm)	102 in (259 cm)
Blade Width (V-Position) \| Curb Guard Width	88 in (224 cm)	99 in (251 cm)	88 in (224 cm)	99 in (251 cm)	88 in (224 cm)	99 in (251 cm)	107 in (272 cm)
Blade Width \| Curb Guard Width	98 in. (249 cm)	110 in. (279 cm)	98 in. (249 cm)	110 in. (279 cm)	98 in. (249 cm)	110 in. (279 cm)	120 in. (305 cm)
D-Force	Optional	Optional	Optional	Optional	Optional	Optional	Not an Option
Lift Cylinder	2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm)	2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm)	2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm)	2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm)	2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm)	2" x 1 1/8 " x 10" (5 cm x 3 cm x 25 cm)	2 1/4" x 1 1/8 " x 12" (6 cm x 3 cm x 31 cm)
Lighting	SL3 L.E.D. with Ice Shield Technology	SL3 L.E.D. with Ice Shield Technology	SL3 L.E.D. with Ice Shield Technology	SL3 L.E.D. with Ice Shield Technology	SL3 L.E.D. with Ice Shield Technology	SL3 L.E.D. with Ice Shield Technology	SL3 L.E.D. with Ice Shield Technology
Plow Shoes	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Plow Type	V-Plow	V-Plow	V-Plow	V-Plow	V-Plow	V-Plow	V-Plow
Plowing Width at 30 degree Angle	85" (216 cm)	95" (241 cm)	85" (216 cm)	95" (241 cm)	85" (216 cm)	95" (241 cm)	104" (264 cm)
Reinforcement Ribs	6 Vertical, 2 Diagonal	8 Vertical, 2 Diagonal	6 Vertical, 2 Diagonal	8 Vertical, 2 Diagonal	6 Vertical, 2 Diagonal	8 Vertical, 2 Diagonal	8 Vertical, 2 Diagonal
SmartLock Cylinders	1 1/2" x 10" (4 cm x 25 cm)	1 1/2" x 10" (4 cm x 25 cm)	1 1/2" x 10" (4 cm x 25 cm)	1 1/2" x 10" (4 cm x 25 cm)	1 1/2" x 10" (4 cm x 25 cm)	1 1/2" x 10" (4 cm x 25 cm)	2" x 10" (5 cm x 25 cm)
Trip Mechanism	Dual-Trip	Dual-Trip	Dual-Trip	Dual-Trip	Dual-Trip	Dual-Trip	Dual-Trip
Trip Springs	3 Torsion Springs (per blade half)	3 Torsion Springs (per blade half)	3 Torsion Springs (per blade half)	3 Torsion Springs (per blade half)	3 Torsion Springs (per blade half)	3 Torsion Springs (per blade half)	3 Torsion Springs (per blade half)
Trip Springs (Moldboard)	4 Extension Springs	4 Extension Springs	4 Extension Springs	4 Extension Springs	4 Extension Springs	4 Extension Springs	4 Extension Springs
Truck Applications	3/4 & 1 Ton	3/4 & 1 Ton	3/4 & 1 Ton	3/4 & 1 Ton	3/4 & 1 Ton	3/4 & 1 Ton	Medium Duty
Vehicle	Truck	Truck	Truck	Truck	Truck	Truck	Truck
Weight	868 lbs / 394 kg	925 lbs / 420 kg	920 lbs / 417 kg	977 lbs / 433 kg	878 lbs / 398 kg	935 lbs / 424 kg	1,205 lbs / 546.58 kg
